Specifications for

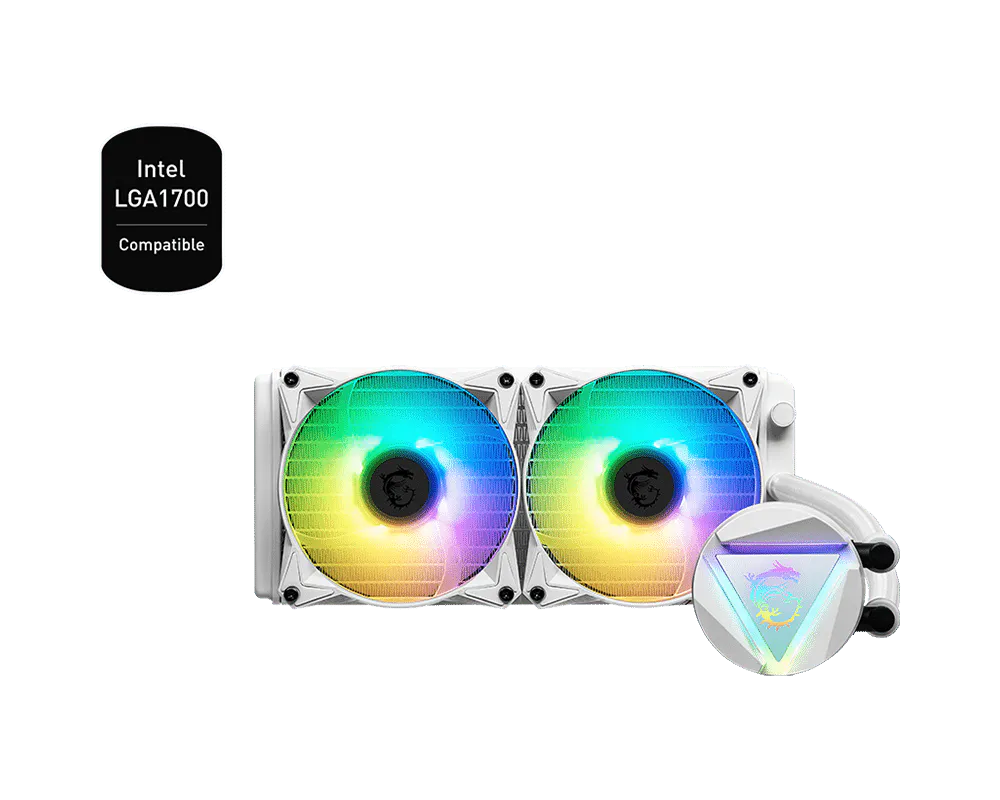

MAG CORELIQUID 240R V2 WHITE
Radiator Size
Radiator Size
240mm
Radiator Dimensions (WxDxH)
Radiator Dimensions (WxDxH)
274 x 120 x 27mm / 10.79 x 4.7 x 1.06 inches
Number of Fans
Number of Fans
2
Fan Dimensions (WxDxH)
Fan Dimensions (WxDxH)
120 x 120 x 25mm / 4.7 x 4.7 x 0.98 inches
Fan Air Flow
Fan Air Flow
21.63 ~ 78.73 CFM
Fan Bearing
Fan Bearing
Two Ball Bearing
Fan Life Expectancy
Fan Life Expectancy
70,000 hours
Fan Rated Current
Fan Rated Current
0.15 A
Fan Power Consumption
Fan Power Consumption
1.8 W
PWM Mode
PWM Mode
YES
Cable Length (PWM Cable)
Cable Length (PWM Cable)
550 / 350mm; 21.65 / 13.78 inches
Fan Lighting
Fan Lighting
ARGB
Pump Life Expectancy
Pump Life Expectancy
100,000 hours
Pump Noise Level
Pump Noise Level
18 dBA
Pump Power Consumption
Pump Power Consumption
4.08W
Pump Speed
Pump Speed
4200 RPM +-10%
Cold Plate Material
Cold Plate Material
Copper
Block Dimensions (WxDxH)
Block Dimensions (WxDxH)
80.57x 66.82 x 48.58mm
Intel Socket Support
Intel Socket Support
LGA 1150/1151/1155/1156/1200/1700/1851
LGA 1366/2011/2011-3/2066
LGA 1366/2011/2011-3/2066
AMD Socket Support
AMD Socket Support
AM5/AM4/FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2
