Specifications for

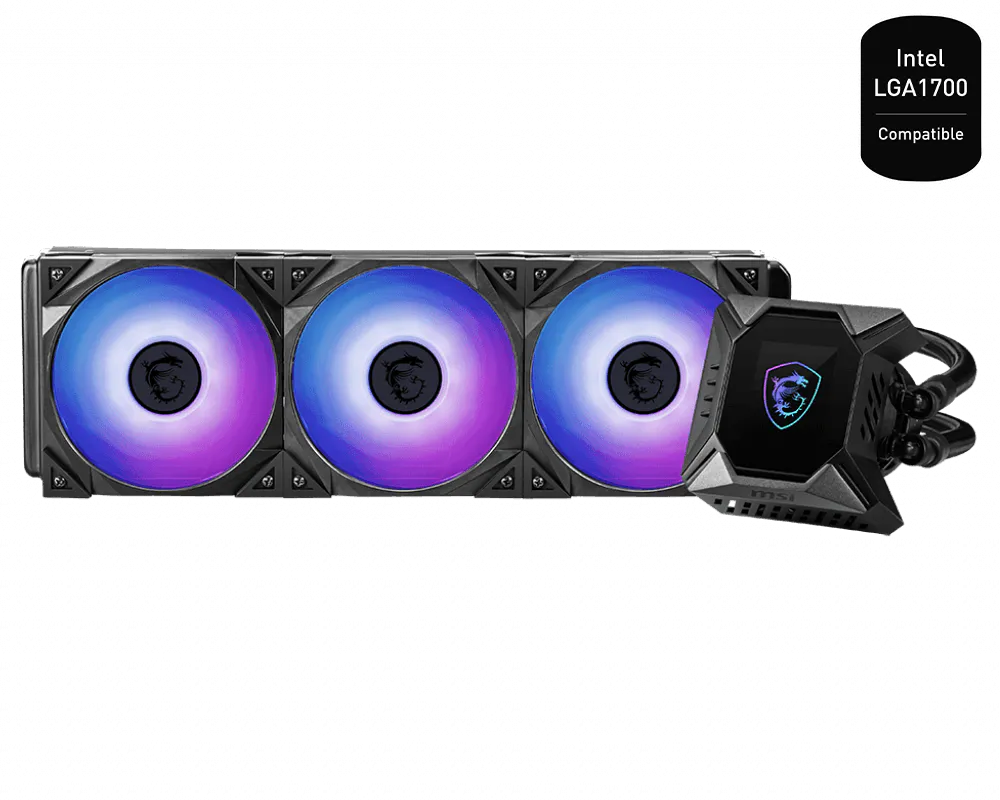

MPG CORELIQUID K360 V2
Radiator Size
Radiator Size
360 mm
Radiator Dimensions (WxDxH)
Radiator Dimensions (WxDxH)
394 x 120 x 27 mm / 15.5 x 4.7 x 1.06 inches
Radiator Material
Radiator Material
Aluminum
Water Cooling Tube Material
Water Cooling Tube Material
Black Rubber + Mesh
Number of Fans
Number of Fans
3
Fan Dimensions (WxDxH)
Fan Dimensions (WxDxH)
120 x 120 x 25 mm / 4.7 x 4.7 x 0.98 inches
Fan Air Flow
Fan Air Flow
77.4 CFM
Fan Bearing
Fan Bearing
Two Ball Bearing
Fan Life Expectancy
Fan Life Expectancy
100,000 Hours
Fan Rated Current
Fan Rated Current
0.28A (MAX)
Fan Power Consumption
Fan Power Consumption
3.36W (MAX)
PWM Mode
PWM Mode
Yes
Cable Length (PWM Cable)
Cable Length (PWM Cable)
350 mm / 13.78 inches
Fan Connector
Fan Connector
4 pin PWM
Fan Lighting
Fan Lighting
ARGB
RGB Connector
RGB Connector
3 pin
Pump Life Expectancy
Pump Life Expectancy
50,000 Hours
Pump Noise Level
Pump Noise Level
20 dBA
Pump Rated Current
Pump Rated Current
0.33A
Pump Power Consumption
Pump Power Consumption
4W
Pump Speed
Pump Speed
2800 +/-300 RPM (PWM controlled)
Pump Connector
Pump Connector
4 pin PWM
Cold Plate Material
Cold Plate Material
Copper
Block Dimensions (WxDxH)
Block Dimensions (WxDxH)
94.66 x 83.36 x 94 mm
Intel Socket Support
Intel Socket Support
LGA 1851/ 1700/ 1200/ 1151/ 1150/ 1155/ 1156
LGA 2066/ 2011-3/ 2011
LGA 2066/ 2011-3/ 2011
AMD Socket Support
AMD Socket Support
AM5 / AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2+ / FM2 / FM1
Socket TR4 / sTRX4 / SP3
Socket TR4 / sTRX4 / SP3
Panel Size
Panel Size
2.4"
Panel Type
Panel Type
LCD
Panel Resolution
Panel Resolution
320 x 240
Panel Brightness
Panel Brightness
500 nits
Interface Connector
Interface Connector
USB 2.0 pin header
Power Connector
Power Connector
SATA
