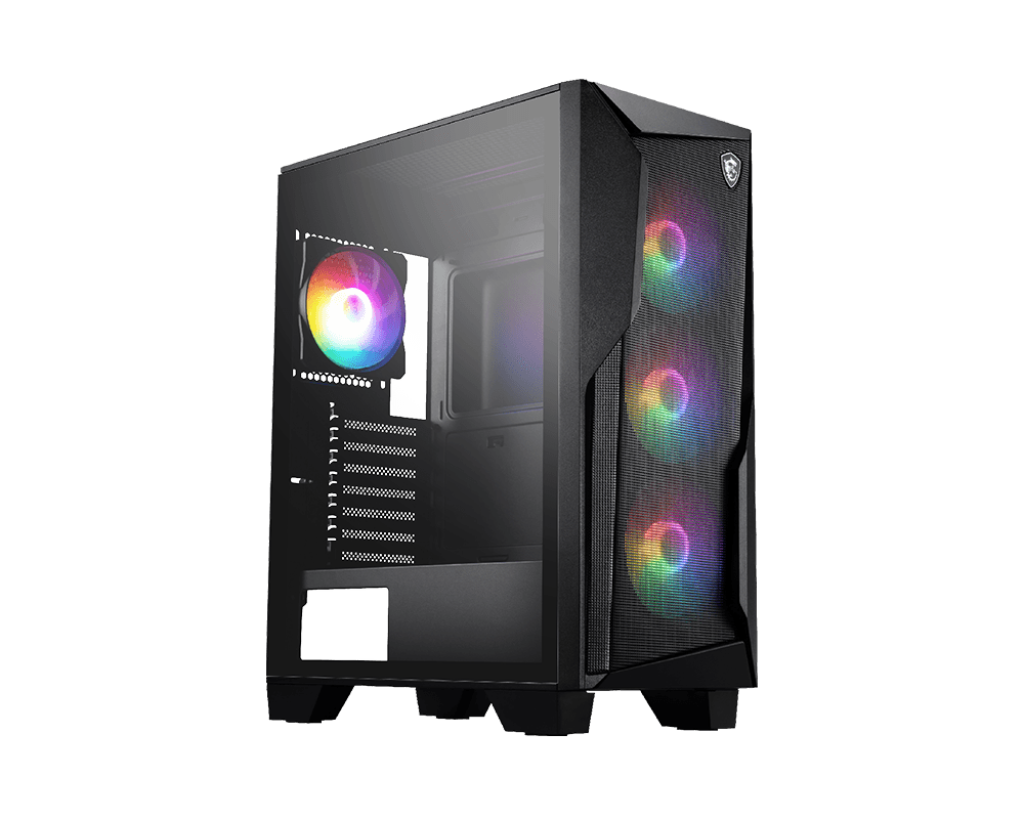

MAG FORGE 130A AIRFLOW
產品規格
Datasheet
Product Name
Case Form Factor
Motherboard Form Factor Support
I/O Ports
Drive Mount Support
Expansion Slots
Maximum GPU Length
Maximum CPU Cooler Height
Power Supply Support
Fan Size Support
Pre-installed Fan Type
Dimensions (DxWxH)
Net Weight
Gross Weight
Radiator Size Support
Product Name
MAG FORGE 130A AIRFLOW
Case Form Factor
Mid-Tower
Motherboard Form Factor Support
Regular:
ATX / Micro-ATX / Mini-ITX
Back-connect:
N/A
I/O Ports
1 x LED On / Off Button
2 x USB 5Gbps (Type-A)
1 x Audio-Out
1 x Mic-In
1 x Reset Button
1 x Power Button
Drive Mount Support
3 x 2.5”
2 x 2.5”/3.5” Combo
Expansion Slots
7
Maximum GPU Length
330 mm / 12.99 inches
Maximum CPU Cooler Height
160 mm / 6.29 inches
Power Supply Support
ATX, 160 mm or up to 200 mm (without 3.5" HDD tray)
Fan Size Support
Top: 2 x 120 mm / 2 x 140 mm
Front: 3 x 120 mm / 2 x 140 mm
Rear: 1 x 120 mm
Side: N/A
PSU Shroud: 2 x 120 mm
Pre-installed Fan Type
Front: 3 x 120 mm Auto RGB fan
Rear: 1 x 120 mm Auto RGB fan
Dimensions (DxWxH)
411.6 x 210 x 498 mm / 16.20 x 8.26 x 19.60 inches
Net Weight
5.76 kg / 12.70 lbs
Gross Weight
6.74 kg / 14.86 lbs
Radiator Size Support
Top: 120 / 240 mm
Front: 120 / 140 / 240 mm
Rear: 120 mm
Side: N/A
Bottom: N/A

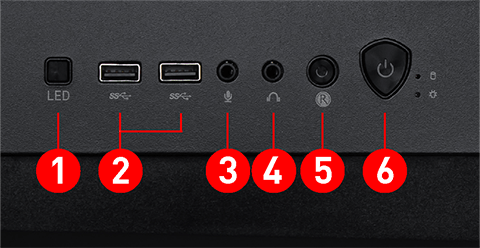

Connection
LED On / Off Button
2 x USB 5Gbps (Type-A)
Audio Out
Mic In
Reset Button
Power Button
產品規格與配備可能會隨地區而有所不同,本公司另保留變更規格不另行通知權利。購買前請與當地線上或實體通路經銷商確認產品規格。
