Specifications for
MAG FORGE 340R AIRFLOW
Product Name
Product Name
MAG FORGE 340R AIRFLOW
Motherboard Form Factor Support
Motherboard Form Factor Support
ATX / M-ATX / ITX

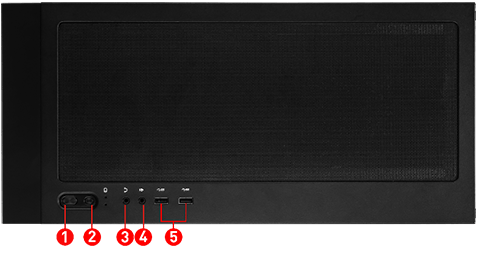

I/O Ports
I/O Ports
1 x Reset Button
1 x Audio-Out
1 x Mic-In
2 x USB 5Gbps (Type-A)
1 x Audio-Out
1 x Mic-In
2 x USB 5Gbps (Type-A)
Drive Mount Support
Drive Mount Support
1 x 2.5"
2 x 2.5" / 3.5"
2 x 2.5" / 3.5"
Expansion Slots
Expansion Slots
7
Maximum GPU Length
Maximum GPU Length
390 mm / 15.35 inches
Maximum CPU Cooler Height
Maximum CPU Cooler Height
160 mm / 6.29 inches
Power Supply Support
Power Supply Support
ATX
Fan Size Support
Fan Size Support
Top: 3 x 120 mm / 2 x 140 mm
Front: 3 x 120 mm / 2 x 140 mm
Rear: 1 x 120 mm
Side: 2 x 120 mm
Bottom: N/A
PSU Shroud: 2 x 120 mm
Front: 3 x 120 mm / 2 x 140 mm
Rear: 1 x 120 mm
Side: 2 x 120 mm
Bottom: N/A
PSU Shroud: 2 x 120 mm
Pre-installed Fan Type
Pre-installed Fan Type
Front: 3 x ARGB fan
Rear: 1 x ARGB fan
Rear: 1 x ARGB fan
Gross Weight
Gross Weight
8.35 kg / 18.41lbs
Radiator Size Support
Radiator Size Support
Top: 120 / 240 / 280 / 360 mm
Front: 120 / 140 / 240 mm
Rear: 120 mm
Side: N/A
Bottom: N/A
Front: 120 / 140 / 240 mm
Rear: 120 mm
Side: N/A
Bottom: N/A
