Specifications for

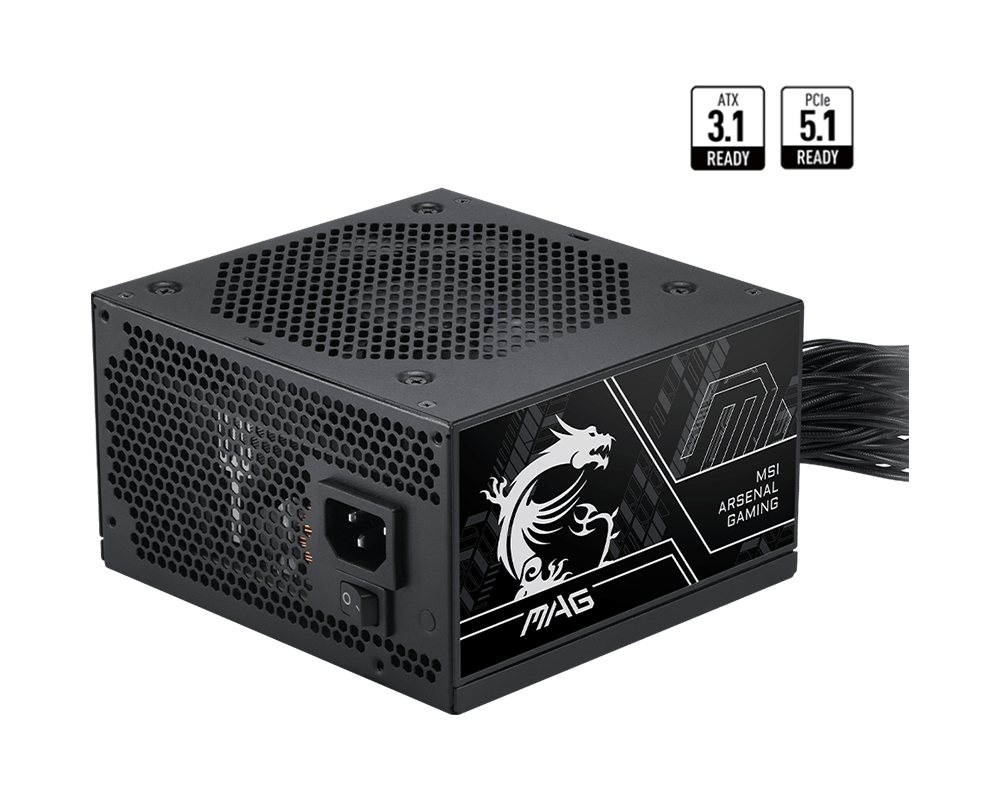

MAG A650BN PCIE5 III
Efficiency Rating
Efficiency Rating
80 PLUS Bronze (up to 85%)
Modular
Modular
No
Fan Size
Fan Size
120 mm
Fan Bearing
Fan Bearing
Hydrualic Bearing
Dimensions (DxWxH)
Dimensions (DxWxH)
140mm x 150mm x 86mm / 5.51 x 5.9 x 3.38 inches
PFC Type
PFC Type
Active PFC
Input Voltage Range
Input Voltage Range
100-240V~
Power Watt
Power Watt
650W
Power Excursion
Power Excursion
200%
Input Frequency Range
Input Frequency Range
50-60Hz
Protection
Protection
OVP, OCP, SCP, OPP, UVP
ATX (24 pin)
ATX (24 pin)
1
EPS (4+4 pin)
EPS (4+4 pin)
2
PCI-E (6+2 pin)
PCI-E (6+2 pin)
2
SATA (15 pin)
SATA (15 pin)
3
MOLEX (4 pin)
MOLEX (4 pin)
2
PCI-E 5.1 (16 pin)
PCI-E 5.1 (16 pin)
1 (300W)
