Specifications for

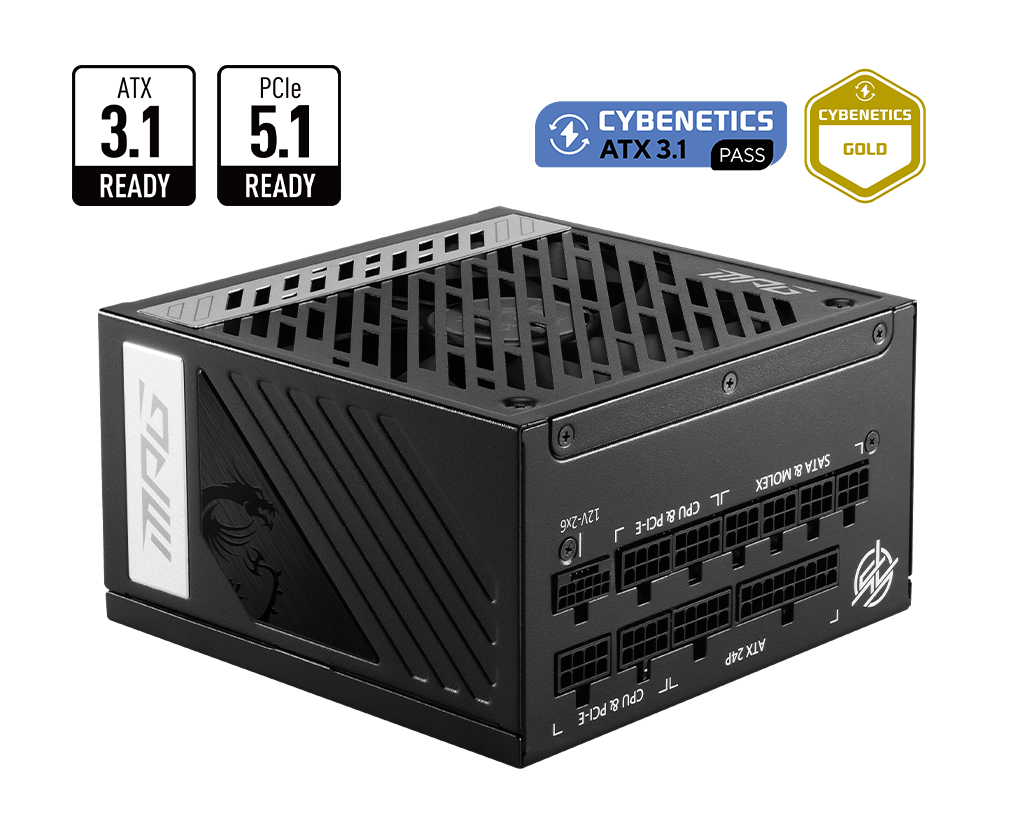

MPG A1000G PCIE5
WEIGHT (CARD)
WEIGHT (CARD)
169g
Efficiency Rating
Efficiency Rating
80 PLUS Gold (up to 90%)
Modular
Modular
Yes (fully modular)
Fan Size
Fan Size
135 mm
Fan Bearing
Fan Bearing
Fluid Dynamic Bearing
Dimensions (DxWxH)
Dimensions (DxWxH)
150 x 150 x 86 mm
PFC Type
PFC Type
Active PFC
Input Voltage Range
Input Voltage Range
100~240 VAC
Power Watt
Power Watt
1000W
Power Excursion
Power Excursion
2000W (*up to 200% of the PSU's rated power for 100μs)
Input Frequency Range
Input Frequency Range
50~60 Hz
Protection
Protection
OCP / OVP / OPP / OTP / SCP / UVP
ATX (24 pin)
ATX (24 pin)
1
Dimensions
Dimensions
120mm x 120mm x 25.6mm
EPS (4+4 pin)
EPS (4+4 pin)
2
PCI-E 5.0 (16 pin)
PCI-E 5.0 (16 pin)
1 (600W)
PCI-E (6+2 pin)
PCI-E (6+2 pin)
6
SATA (15 pin)
SATA (15 pin)
12
Air Flow
Air Flow
19.79 - 71.27 CFM
MOLEX (4 pin)
MOLEX (4 pin)
4
Static Air Pressure
Static Air Pressure
0.16 - 2.09 mm-H20
FDD (4 pin)
FDD (4 pin)
1
Connector
Connector
4-Pin PWM/DC
17.2 - 33.6 dBA
