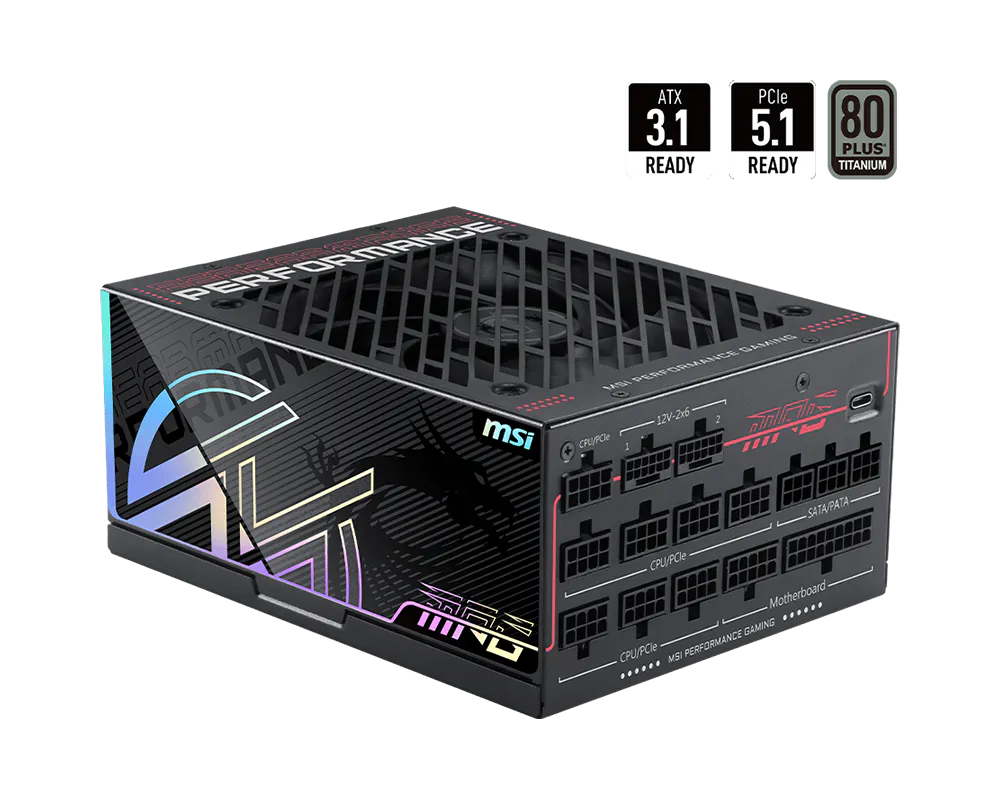

Specifications for
MPG Ai1300TS PCIE5
Efficiency Rating
Efficiency Rating
80 PLUS Titanium (up to 94%)
Modular
Modular
Yes (full modular)
Fan Size
Fan Size
135 mm
Fan Bearing
Fan Bearing
Fluid Dynamic Bearing
Dimensions (DxWxH)
Dimensions (DxWxH)
190 x 150 x 86 mm
PFC Type
PFC Type
Active PFC
Input Voltage Range
Input Voltage Range
100-240V~
Power Watt
Power Watt
1300W
Input Frequency Range
Input Frequency Range
50-60 Hz
Protection
Protection
OCP/ OTP/ OPP/ SCP/ OVP/ UVP/ SIP/ NLO
ATX (24 pin)
ATX (24 pin)
1
EPS (4+4 pin)
EPS (4+4 pin)
1
PCI-E (6+2 pin)
PCI-E (6+2 pin)
7
SATA (15 pin)
SATA (15 pin)
8
MOLEX (4 pin)
MOLEX (4 pin)
4
PCI-E 5.1 (16 pin)
PCI-E 5.1 (16 pin)
2 (600W)
