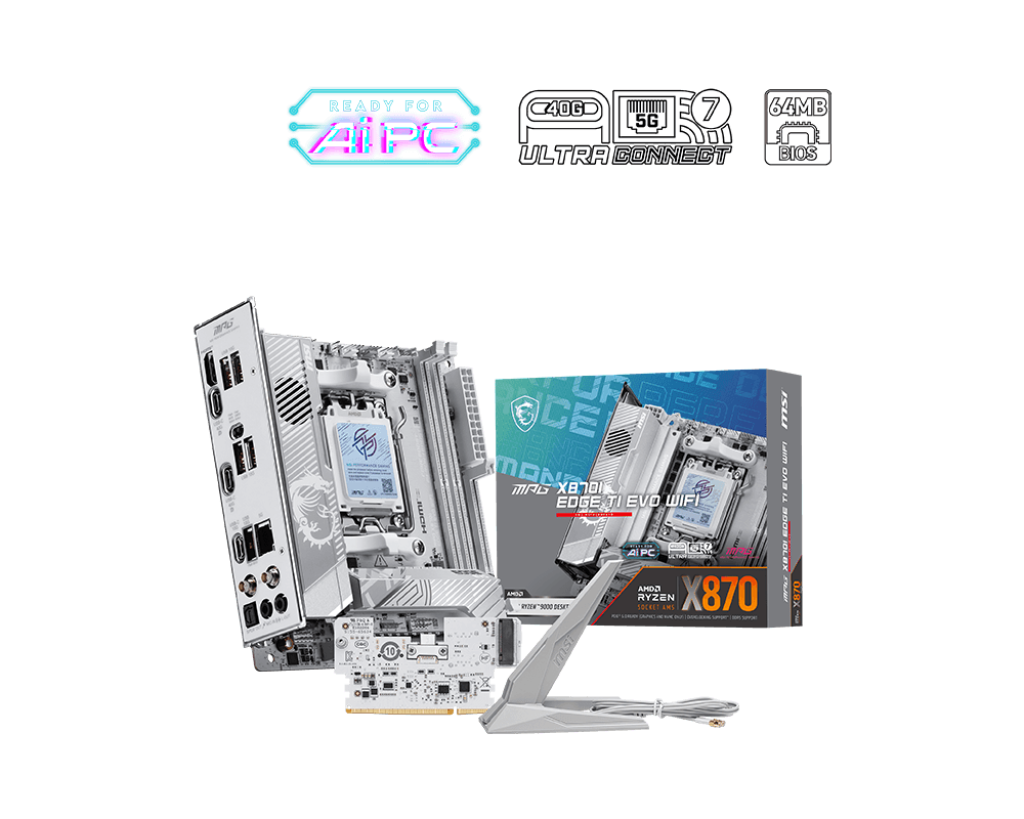

MPG X870I EDGE TI EVO WIFI

Chipset	AMD X870
CPU	Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Memory	2x DDR5, Maximum Memory Capacity 128GB Memory Support DDR5 10000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8400+ MT/s • 1DPC 2R Max speed up to 8000+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPO^TM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* * The DIMM slots on this motherboard only have single-sided latches. CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. * Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Onboard Graphics	1x HDMI™ Support HDMI^TM 2.1 with TMDS port, supporting a maximum resolution of 4K 60Hz* 2x Type-C DisplayPort *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot	1x PCI-E x16 slot (Qty) PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E1 slot (From CPU) • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) 1x FP card slot • Supports the installation of MSI 5-in-1 XPANDER card only.
Audio	Realtek^® ALC4080 Codec 7.1-Channel USB High-Performance Audio Supports up to 32-Bit/384 kHz playback on front panel Supports S/PDIF output
Storage	1x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices 2x SATA 6G (Qty) M.2_1 slot (From CPU) • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M.2_2 slot (From X870 chipset) • Supports up to PCIe 4.0 x4 • Supports 2260/2280 storage devices • Supports single sieded M.2 SSD only 5-in-1 XPANDER Card M.2_3 slot (From X870 chipset) • Supports up to PCIe 4.0 x4 • Supports 2260/2280 storage devices • Supports single sided M.2 SSD only
RAID	• Supports RAID 0, and RAID 1 for SATA storage devices • Supports RAID 0, RAID 1 and RAID 5* for M.2 NVMe storage devices * RAID 5 configuration is only supported by Ryzen™ 9000 series processors.
USB	2x USB 2.0 (Front) 2x USB 5Gbps Type A (Front) 5x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) 2x USB 40Gbps Type C (Rear)
LAN	1x Realtek^® 8126 5G LAN
Internal IO	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x PUMP_SYS Fan 1x System Fan 1x ARGB+FAN+USB2.0 Header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Addressable V2 RGB LED connector (JARGB_V2) 2x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports
WIRELESS LAN & BLUETOOTH	Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth^® 5.4*, MLO, 4KQAM 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor's website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan.
LED FEATURE	4x EZ Debug LED

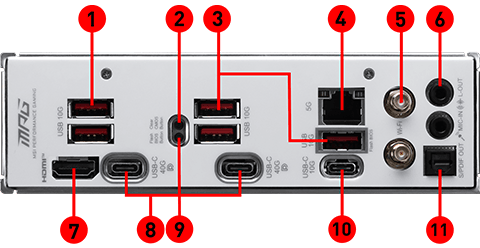

BACK PANEL PORTS	USB 10Gbps Type-A Clear CMOS Button USB 10Gbps Type-A 5G LAN Wi-Fi / Bluetooth Audio Connectors HDMI™ USB 40Gbps Type-C Flash BIOS Button USB 10Gbps Type-C Optical S/PDIF Out
OPERATING SYSTEM	Support for Windows^® 11 64-bit

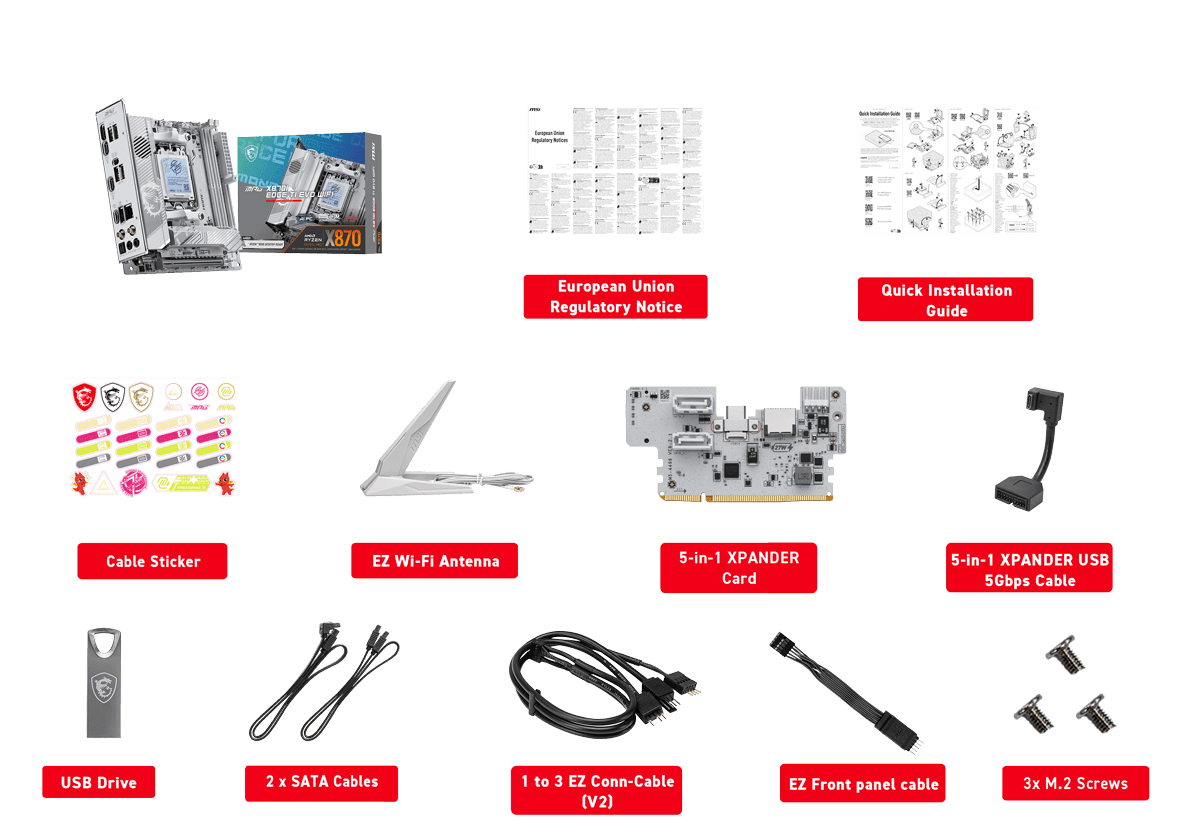

BOX CONTENT
PCB Info	Mini-ITX 170mmx170mm

Processor

Supports 12th Gen Intel^® Core^™, Pentium^® Gold and Celeron^® Processors¹
Processor socket LGA1700

Please go to intel.com for compatibility information.

See supported processors

Chipset

Intel^® Z690 Chipset

Memory

4x DDR5 memory slots, support up to 128GB¹
Supports 1R 4800 MHz (by JEDEC & POR)
Max. overclocking frequency:
- 1DPC 1R Max speed up to 6666+ MHz
- 1DPC 2R Max speed up to 5600+ MHz > 6000+ MHz
- 2DPC 1R Max speed up to 4000+ MHz > 5600+ MHz
- 2DPC 2R Max speed up to 4000+ MHz > 5600+ MHz
Supports Intel^® XMP 3.0 OC
Supports Dual Controller Dual-Channel mode
Supports non-ECC, un-buffered memory

Please refer to www.msi.com for more information on compatible memory

See supported memory

Expansion Slots

3x PCIe x16 slots
- PCI_E1 & PCI_E2 slots (From CPU)
  - Support PCIe 5.0
  - Support x16/ x0, x8/ x8
- PCI_E3 slot (From Z690 Chipset)
  - Supports PCIe 3.0 x4

Onboard Graphics

1x HDMI™ 2.1 with HDR port, supports a maximum resolution of 4K 60Hz¹/ ²
1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz¹/ ²

Available only on processors featuring integrated graphics.
Graphics specifications may vary depending on the CPU installed.

Multi-GPU

Supports AMD^® CrossFire^™ Technology

Storage

4x SATA 6Gb/s ports - SATA5~8* (From Z690 Chipset)¹
2 x SATA 6Gb/s ports - SATAA & SATAB (From ASMedia ASM1061)
5x M.2 slots (Key M)
- M2_1 slot (From CPU)
  - Supports PCIe 4.0 x4
  - Supports 2260/ 2280/ 22110 storage devices
- M2_2 slot (From Z690 Chipset)
  - Supports PCIe 4.0 x4
  - Supports 2260/ 2280 storage devices
- M2_3 slot (From Z690 Chipset)
  - Supports PCIe 4.0 x4
  - Supports 2242/ 2260/ 2280/ 22110 storage devices
- M2_4 slot (From Z690 Chipset)¹
  - Supports PCIe 3.0 x4
  - Supports SATA 6Gb/s
  - Supports 2242/ 2260/ 2280 storage devices
- M2_5 slot (From Z690 Chipset)
  - Supports PCIe 4.0 x4
  - Supports SATA 6Gb/s
  - Supports 2260/ 2280 storage devices
- M2_2~5 support Intel^® Optane™ Memory
Supports Intel^® Smart Response Technology for Intel Core™ processors

SATA7 will be unavailable when installing M.2 SATA SSD in the M2_4 slot.

RAID

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 , RAID 5 and RAID 10 for M.2 NVMe storage devices

USB

Intel^® Z690 Chipset

1x USB3.2 Gen2x2 20Gbps Type-C port on the back panel
6x USB 3.2 Gen 2 10Gbps ports (5 Type-A ports on the back panel, 1 Type-C available through the internal connector)
2x USB 3.2 Gen 1 5Gbps ports available through the internal connector
4 USB 2.0 ports on the back panel

USB Hub-GL850G

4x USB 2.0 ports available through internal connectors

Audio

Realtek^® ALC4080 Codec

7.1-Channel High Definition Audio
Supports S/PDIF output

LAN

1x Intel^® I225V 2.5Gbps LAN controller

WiFi & Bluetooth

Intel^® Wi-Fi 6E module

The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/6GHz ¹(160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth 5.2², FIPS, FISMA

Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in WIN10 21H1 and Windows 11.
Bluetooth 5.2 will be ready in WIN10 21H1 and Windows11.

Internal connectors

1x 24-pin ATX main power connector
2x 8-pin ATX 12V power connectors
6x SATA 6Gb/s connectors
5x M.2 slots (M-Key)
1x USB 3.2 Gen 2 10Gbps Type-C connector
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
6x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x Clear CMOS jumper
1x TPM module connector
1x TBT connector (supports RTD3)
1x Tuning Controller connector

LED Feature

1x EZ LED Control switch
4x EZ Debug LED
1x 2-Digit Debug Code LED
1x 4-pin RGB LED connector
2x 3-pin RAINBOW LED connectors
1x 3-pin CORSAIR LED connector

Back panel ports

USB 2.0
DisplayPort
2.5G LAN
Wi-Fi/Bluetooth
Audio Connectors
Flash BIOS Button
HDMI™
USB 3.2 Gen 2 10Gbps Type-A
USB 3.2 Gen 2x2 20Gbps Type-C
Optical S/PDIF Out

Dimensions

ATX Form Factor
12 in. x 9.6 in. (30.5 cm x 24.4 cm)

Mounting

9 mounting holes

Operating System

Support for Windows^® 11 64-bit, Windows^® 10 64-bit

Box content
